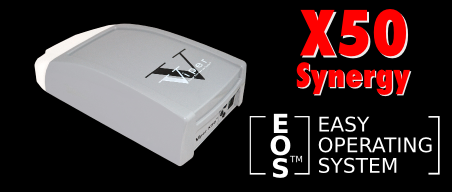

The Incredible Viper X50

Amazingly Quiet...

The Viper X50 is a feature-rich, reliable system designed to perform. It's built to last and guaranteed to provide years of trouble-free operation. Its advanced operating system and Direct Current (DC) motor ensures an amazingly quiet operation.



Two styles of digital remote control transmitters in three different configurations: 2-channel MINI, 4-channel MINI (optional), and 3-channel MICRO (optional) remotes for controlling other devices. Unique, multi-bit technology, LED control button verification.

Modular Multi-Function Wall Station

Provides door operation and convenience from inside the garage. Compact, and stylishly designed to fit in a standard single gang electrical box.

  • Illuminated push-button
  • Security vacation/lock switch
  • Light control
  • Individual control stations can be combined into on solid panel

Wireless Keyless Entry System (WKES)

Convenient and easy-to-use, our wireless keyless entry systems use a 4-digit PIN and controls up to 3 garage doors.

  • Code security
  • Weather resistant
  • Provides temporary access to authorized visitors or service personnel

Specifications & Features

Travel Rate-Main: 5.5 in/sec
Push & Pull Force: 500 Newton (1/2 HPS)*
Logic Type: Microprocessor with Built-In Surge Suppressor
Limit Settings: Electronic
Display: 8-LED Operation / Diagnostic System
Dimensions (L x W x H): 18¼" x 8 ½" x 6¾"
Lighting: Long-lasting LED lighting   - Why LED?


Viper X50 Manual: Download Here

Viper X50 Brochure: Download Here

Safety & Convenience

  • Meets and exceeds all UL325 requirements
  • Easy Operating System (EOS)
  • Infrared photo eye protection system
  • Safety reversal system
  • Manual emergency release in case of power failure
  • On-Command Door Activation (OCDA), programmable "open" intermediate position to vent the garage
  • Energy conservation feature
  • Self-diagnostic system
